LK-NY55D Malosi Maualuga DWDM DFB Laser
- Feso'ota'i Tu'usa'o i le taimi nei
- Maualuluga-Dynamic-Vaega
- Maulalo o le taimi nei
- Maualuga Galuega Faatino
- 14pin Butterfly Package
- Fua vevela: -20 i le 70 ℃
- Tulaga Maualuluga
- E oʻo atu i le 100mw le maualuga o le mana
- Polarization Tausia (PM) fiber
Faamatalaga oloa
LK-NY55D laser ua mamanuina e avea o se eletise eletise maualuga, wavelength-specific optical emitter, lea e lelei mo le tuʻufaʻatasia ma se modulator fafo i totonu o CATV ma DWDM faiga. E fetaui lelei mo talosaga e aofia ai super trunking ma tufatufaga. Ole umi ole galu o loʻo ofoina mai e lenei faʻasologa o loʻo mulimulitaʻi ile ITU Grid faʻataʻitaʻiga i tulaga uma e lua ma laina faʻapitoa.
O lenei fa'asologa o lo'o sau i le polarization-maintaining (PM) fiber ma fa'aalia ai le feso'ota'iga sa'o (dc). O lo'o aofia ai le Thermoelectric Cooler (TEC) tu'ufa'atasia, o le thermistor mo le fa'alogoina o le vevela, ma le mata'itū ata mo le mata'ituina o le eletise. O le module o loʻo tuʻuina i totonu o le 14-pin butterfly package e fetaui ma le OC-48 pine layout, ma o loʻo tuʻufaʻatasia ai se mea faʻapitoa faʻapitoa i totonu o le afifi lava ia.
auiliili Technical
| Fa'amatalaga Fa'aeletise / Mata (TC = 25 ± 3 ℃ ) | ||||||
|---|---|---|---|---|---|---|
| Parameter | Na ta'ua e Sym. | tuutuuga | min | Ituaiga | Max | Unite |
| faisoʻoga | f | - | 0.01 | - | 1 | Susuga |
| Alatele (-3dB, I=200mA) | S21 | - | 1 | Susuga | ||
| Malosi'i fa'aaogā fa'apitoa | P | 40 mW version, T = Tset, IF = OuOP50 mW version, T = Tset, IF = OuOP63 mW version, T = Tset, IF = OuOP80 mW version, T = Tset, IF = OuOP100 mW version, T = Tset, IF = OuOP |
40 50 63 80 100 |
- | - | mW |
| Fa'asagaga o le taimi nei | ith | BOL | - | - | 40 | mA |
| Faʻamasinoga o loʻo iai | ioe | 40 mW lomiga, BOL 50 mW lomiga, BOL 63 mW lomiga, BOL 80 mW lomiga, BOL 100 mW lomiga, BOL |
- - - |
- - - |
280 350 450 580 650 |
mA |
| Faagaioiga volitiga | Vop | BOL, IF = OuOP | - | - | 2.5 | V |
| Ole umi ole galu | λ | T = Tset, IF = OuOP | - | 1550 | - | nm |
| Le pisa malosi | rhine | - | - | - | -160 | dB/Hz |
| Fa'atatau o le taofiofia o le itu | SMSR | 30 | - | - | dB | |
| Polarization fa'aumatia fua | PER | IF = OuOP | 17 | - | - | dB |
| Ole umi ole galu ile TC mamao | ∆λLUGA | T = TOP | - | - | 40 | pm |
| Tete'e vevela | Rth | TOP=25℃ | 9.5 | 10 | 10.5 | KΩ |
| Thermistor Temp. Coefficients | TCTH | TOP=25℃ | - | -4.4 | - | % / ° C |
| TEC i le taimi nei | Itec | -20 ℃<TC<70 ℃ | -1.0 | - | 1.5 | A |
| TEC voltage | Vtec | -20 ℃<TC<70 ℃ | -2.0 | - | 3.0 | V |
| RF impedance | Sina | 40MHz - 1002MHz | 1 | - | 6 | Ω |
| Mata'ituina le PD i le taimi nei | Im | IF = IOP, VMPD = -5 V | 0.1 | - | 2.5 | mA |
| Mata'ituina le PD Pogisa le taimi nei (PD) | Id | IOP = 0 mA, VMPD = -5 V | - | - | 0.2 | uA |
| Fa'aa'oa'oga & Fa'ato'a Maualuga Fa'ailoga | |||||
|---|---|---|---|---|---|
| Parameter | Na ta'ua e Sym. | tuutuuga | Min. | Max. | Vaega |
| Laser agai i luma DC nei | If | - | - | 750 | mA |
| Leisa fa'afou voltage | V | - | - | 2 | V |
| Photodiode Voltage Toe | VR | - | - | 10 | V |
| Laveaʻi galuega | I | - | -20 | + 70 | ° C |
| teuina o Meaai a le vevela | Ts | - | -40 | + 85 | ° C |
| ESD | - | HBM: R = 1500 Ω, C = 100 pF | -500 | 500 | V |
Fa'amatalaga: O tupe meataalo uma e maua mai i wafers ua fa'amaonia e fa'aaoga ai le tele o masini e tatau ona maua ai se fua talafeagai mo le mu.

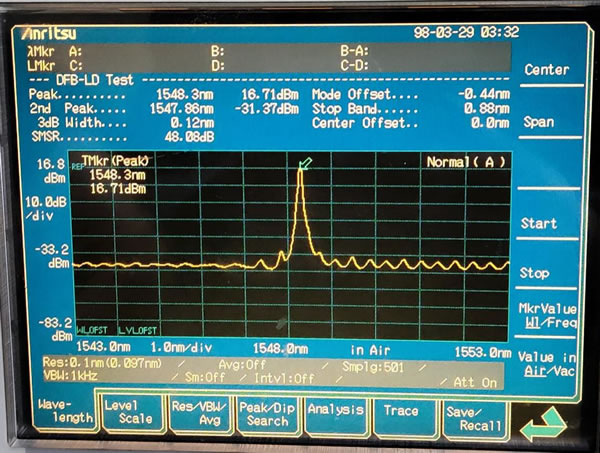

● Fa'amatalaga masani

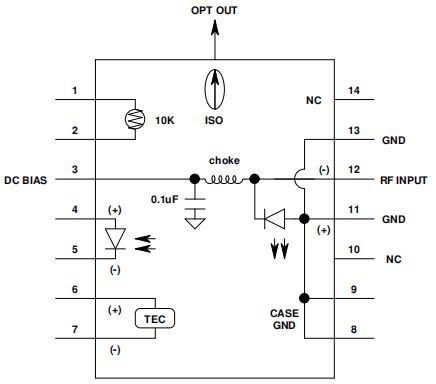

● Fuafuaga eletise
| Ta'ita'i# | galuega tauave | Ta'ita'i# | galuega tauave |
| 1 | Fa'avevela | 8 | GND |
| 2 | Fa'avevela | 9 | GND |
| 3 | LD-(Fa'aituau) | 10 | NC |
| 4 | PD anode | 11 | GND(LD+) |
| 5 | PD cathode | 12 | RF I totonu |
| 6 | Fa'alili + | 13 | GND(LD+) |
| 7 | Fa'alili- | 14 | NC |

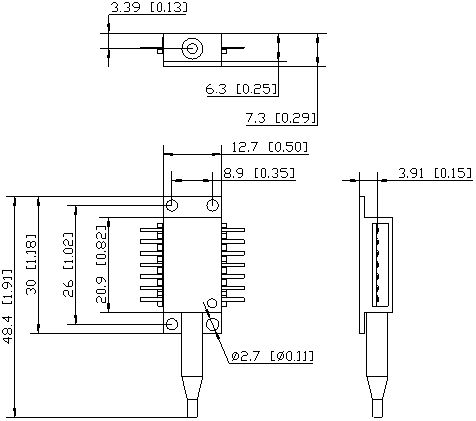

● Fua ma pine ( Iunite: mm[inisi] )
Feso'ota'i RF: SMA
● Fa'amatalaga Fa'atonu
Pepa 1:
| kote | faʻamatalaga |
| 55 | DWDM High Power 14PIN butterfly afifi |
Pepa 2:
| kote | Mana opitika |
| 040 | 40mW |
| 050 | 50mW |
| 063 | 63mW |
| 100 | 100mW |
Pepa 3:
| alāvai | Auala (THz) | Umi ole Galu (nm) | alāvai | Auala (THz) | Umi ole Galu (nm) | |
| C01 | So'o se umi fa'aleaganu'u e mana'omia | C37 | 193.7 | 1547.72 | ||
| C02 | Non-ITU, 1547 nm – 1560 nm | C38 | 193.8 | 1546.92 | ||
| C03 | Non-ITU, 1557 nm – 1560 nm | C39 | 193.9 | 1546.12 | ||
| C04 | Non-ITU, 1530 nm – 1560 nm | C40 | 194 | 1545.32 | ||
| C15 | 191.5 | 1565.50 | C41 | 194.1 | 1544.53 | |
| C16 | 191.6 | 1564.68 | C42 | 194.2 | 1543.73 | |
| C17 | 191.7 | 1563.86 | C43 | 194.3 | 1542.94 | |
| C18 | 191.8 | 1563.05 | C44 | 194.4 | 1542.14 | |
| C19 | 191.9 | 1562.23 | C45 | 194.5 | 1541.35 | |
| C20 | 192 | 1561.41 | C46 | 194.6 | 1540.56 | |
| C21 | 192.1 | 1560.61 | C47 | 194.7 | 1539.77 | |
| C22 | 192.2 | 1559.79 | C48 | 194.8 | 1538.98 | |
| C23 | 192.3 | 1558.98 | C49 | 194.9 | 1538.19 | |
| C24 | 192.4 | 1558.17 | C50 | 195 | 1537.4 | |
| C25 | 192.5 | 1557.36 | C51 | 195.1 | 1536.61 | |
| C26 | 192.6 | 1556.55 | C52 | 195.2 | 1535.82 | |
| C27 | 192.7 | 1555.75 | C53 | 195.3 | 1535.04 | |
| C28 | 192.8 | 1554.94 | C54 | 195.4 | 1534.25 | |
| C29 | 192.9 | 1554.13 | C55 | 195.5 | 1533.47 | |
| C30 | 193 | 1553.33 | C56 | 195.6 | 1532.68 | |
| C31 | 193.1 | 1552.52 | C57 | 195.7 | 1531.9 | |
| C32 | 193.2 | 1551.72 | C58 | 195.8 | 1531.12 | |
| C33 | 193.3 | 1550.92 | C59 | 195.9 | 1530.33 | |
| C34 | 193.4 | 1550.12 | C60 | 196 | 1529.55 | |
| C35 | 193.5 | 1549.32 | C61 | 196.1 | 1528.77 | |
| C36 | 193.6 | 1548.51 | C62 | 196.2 | 1527.99 | |
Pepa 4:
| kote | faʻamatalaga |
| PM | PM-FC/APC fiber so'oga, 0.9mm, 1m umi |
● Puipuiga
Ole alava lolo'u alaleo e le itiiti ifo i le 20 mm mo le aloese mai alava faaleagaina.
Ia mautinoa o lo'o mama le pito fa'apipi'i alava a'o le'i fa'afeso'ota'i i le opto-circuit.
Ole puipuiga talafeagai ole ESD e manaʻomia ile teuina, felauaiga ma le faʻaaogaina.
talosaga
CATV
DWDM
Vaavaai avanoa
Super trunking ma tufatufaga,
Fa'asalalauina Fa'ailoga i Feso'ota'iga Mata
