LK-HPPD-Ku Malosi Maualuga InGaAs Fa'ata'ita'i Fa'ata'ita'i Paleni

  • Lautele Bandwidth
  • Tuufaatasia Bias-T
  • DC Fa'atasi
  • Faamaufaailoga Hermetically, Feso'ota'i SMA
  • Maulalo Pogisa i le taimi nei, maualuga faailoilo-i-leo pisapisao.
  • Fa'ailoga Laiti.
fesili

+ 86 29 88244373

Faamatalaga oloa

O le High-Speed ​​Balanced Photodetector (HPPD-Ku) o se masini optoelectronic saʻo faʻatulagaina mo faʻaoga numera ma analog. O lenei module e tu'ufa'atasia se InGaAs PIN photodiode fa'atasi ai ma se tali mata'ina mai le 1250 i le 1650 nanometers, e aofia ai ma mea fa'akomepiuta talafeagai e fa'amautinoa ai le fa'amaoni ma le fa'atinoga.

LK-HPPD-Ku e mafai ona tuʻuina atu se bandwidth o le 18 gigahertz, faʻafaigofie mo faʻamatalaga faʻasalalau faʻamatalaga maualuga. O lo'o fa'agaoioia i luga o le eletise + 5-volt, fa'atasi ma mana'oga mana'omia mo le mautu ma le lelei. O le module e fetaui lelei ma fa'alava fa'apipi'i 9/125-micrometer tulaga tasi, fa'amautinoa le tu'ufa'atasia lelei ma fa'alavalava o lo'o iai. Ua fa'apipi'iina e le Radio Frequency (RF) se feso'ota'iga feso'ota'i SMA, lea e fa'afetauia le impedance i le 50 ohms, fa'afaigofie le fa'aliliuina lelei o fa'ailo ma fa'aitiitia ai le gau.

auiliili Technical
Fa'aa'oa'oga & Fa'ato'a Maualuga Fa'ailoga
Parameter Na ta'ua e Sym. Ituaiga faatulagaga Vaega
Teuina vevela tulaga TSTG -45～ +85 -55～ +100 ℃
Va'aiga o le vevela o le pusa ga'o TC 25 -40～ +85 ℃
Malosiaga Faaituau VR +5 +5 ~ +9 V
Malosiaga Ulufale Mata pine + 10 + 17 dBm
Malosi o mata e mu PB - + 20 dBm
Le vevela faʻapipiʻi Tp 280（10s） 330（10s） ℃
Fa'amatalaga Fa'aeletise / Mata (TC = 22 ± 3 ℃ )
Parameter Saini Tulaga Tofotofoga Tulaga faataʻatia Vaega
Uiga ole umi λ - 1000～ 1650 nm
Va'aiga Fa'atele - - Ku - Fa'aili -
Laiti Fa'ailoga Fa'ailoga f-3dB TC = 22 ± 3 ℃ 0.8～ 18 GHz
Talitonu Re VR , Pin =1mW λ = 1310 nm ≥ 0.85 A/W
λ = 1550 nm ≥ 0.8
Amplitude mafolafola A TC =-45～+85 ℃ ≤ ± 1.5 dB
Saturation Optical Power Ps VR , λ = 1550 nm
AC Modulated		 + 17 dBm
Ava Pogisa Id VR ≤ 10 nA
Saturation RF Malosiaga o Mea Pi fafo - -10 dBm
Faʻatinoga o galuega RL - 50 Ω

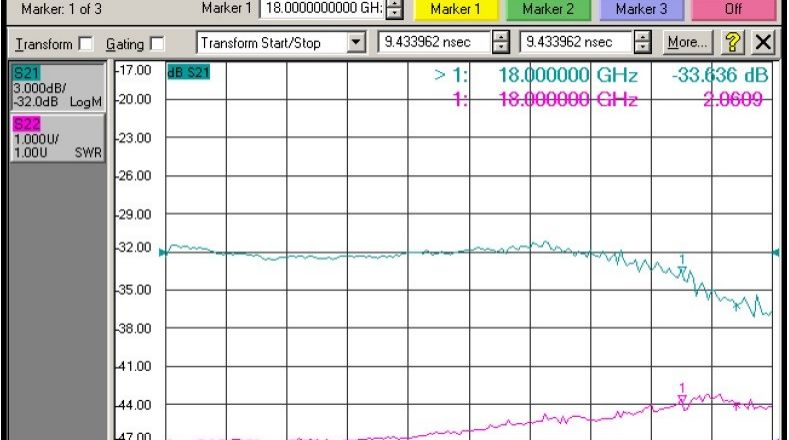

● Pipi Tali masani

(VR, λ=1550nm, TC =25 ºC, Pin=0dBm)

（ Ku - Tali Fa'ata'ita'i Fa'ata'ita'i Fa'aili Fa'asologa Fa'asolo)

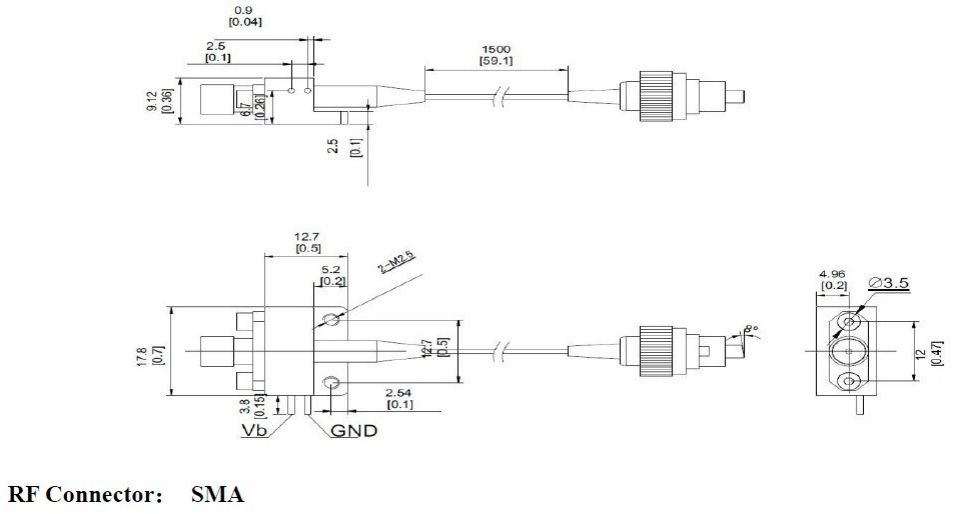

● Fua ma pine ( Iunite: mm[inisi] )

●okaina Faamatalaga

Pepa 1:

kote Alalaupapa Analog
KU 0.8 ~ 18GHz

Pepa 2:

kote Ituaiga Connector mataʻi
N Leai se Soso'o Tusa-faiga 9 / 125 μm fibre pigtail
A FC / APC
P FC / PC

● Puipuiga

  • Ole alava lolo'u alaleo e le itiiti ifo i le 20 mm mo le aloese mai alava faaleagaina.

  • Ia mautinoa o lo'o mama le pito fa'apipi'i alava a'o le'i fa'afeso'ota'i i le opto-circuit.

  • Ole puipuiga talafeagai ole ESD e manaʻomia ile teuina, felauaiga ma le faʻaaogaina.

E mafai ona faʻapipiʻiina uma a matou photodetectors faʻapitoa i modules!

talosaga

  • Feso'ota'iga-fibre Optical

  • Fa'asologa o Fa'amatalaga Radar

  • Taua faaeletonika

  • Su'ega Fa'ailo maualuga ma Fua

  • Puipuiga ma le mataituina
