LK-NY15D 1550nm Microwave DFB Laser Module
- Fa'atonuga Fa'atonuga
- Maualuluga-Dynamic-Vaega
- 18 GHz Bandwidth
- Fa'amata'u maualalo le taimi nei
- Mana maualuga galuega faatino
- 7pin butterfly afifi ma SMA so'oga
- Fa'agaoioi mataupu vevela: -40 i 70 ℃
- Faʻaleleia atili le faʻatuatuaina
Faamatalaga oloa
LK-NY15D leisa o se maualuga-fa'atinoga, fa'avasega sa'o Fa'amatalaga Fa'amatalaga (DFB) fa'atulagaina mo feso'ota'iga fiber optic broadband. E avea o se sui sili atu mo faiga uaea coaxial pe a faʻasalalau faʻailoga i le 12 GHz poʻo le 18 GHz alalaupapa.
LK-NY15D faʻaleleia le faʻatuatuaina o fesoʻotaʻiga fesoʻotaʻiga microwave e ala i le tuʻuina atu o faʻailoga RF i la latou foliga faʻapitoa, lea e faʻaleleia atili ai le lelei o faʻailoga i luga o alaleo o talosaga e pei o le antenna remoting, telemetry, taimi ma le tufatufaina o faʻailoga, faʻapea foʻi ma fua ma faʻatuai laina.
O lenei faasologa o leisa o loʻo faʻaalia ai se mea faʻapipiʻi faʻapipiʻi faʻapipiʻi, thermoelectric cooler (TEC), thermistor, laser diode chip, ma se photodiode mataʻituina, o ia mea uma e faʻamaufaʻailogaina i totonu o se pusa 7-pin butterfly malosi e faʻamautinoa ai le puipuiga o le hermetic ma le faʻatinoga lelei.
auiliili Technical
| Mautinoa Tapulaa Maualuga | ||||
|---|---|---|---|---|
| Parameter | faʻailoga | Min. | Max. | Vaega |
| Laser diode agai i luma | If | - | 120 | mA |
| Leisa diode toe fa'afo'i voltage | V | - | 1 | V |
| Malosi i luma | Pf | - | 20 | dBm |
| PD fesuia'i voltage | V | - | 15 | V |
| Fa'asaga i luma (PD) | Im | - | 2 | mA |
| Laveaʻi galuega | To | -40 | + 70 | ° C |
| teuina o Meaai a le vevela | Ts | -55 | + 85 | ° C |
| Teuga ole susū | Sr | - | 85 | % |
| Fa'amatalaga Fa'apitoa ma Eletise (Tc=25°C) | |||||||
|---|---|---|---|---|---|---|---|
| Parameter | faʻailoga | Tulaga Tofotofoga | min | Ituaiga | Max | Unite | tusi |
| Wavelength | λ | IF = OuOP, T = TOP | - | 1550 | - | nm | |
| faisoʻoga | - | X Filifiliga | 0.1 | - | 12 | GHz | - |
| Ku filifiliga | 1 | - | 18 | ||||
| Malosi'i Fa'amatalaga Mata | P | IF=Iop | - | 10 | - | mW | 1 |
| Fa'asagaga o le taimi nei | Ith | λ=1550nm | - | - | 10 | mA | - |
| Faʻamasinoga o loʻo iai | Iop | λ=1550nm | - | 55 | 100 | mA | - |
| Faagaioiga volitiga | Vop | λ=1550nm | - | 1.5 | 2.5 | V | - |
| Fa'alelei lelei | SE | - | 0.2 | - | - | W/A | - |
| Fa'atatau o le taofiofia o le itu | SMSR | λ=1550nm, IF=Iop | 30 | - | - | dB | - |
| Pisao Malosi Rative | RIN | - | -150 | -130 | dB/Hz | - | |
| Alatele (-3dB, I=60mA) | S21 | X Filifiliga | - | 12 | - | GHz | - |
| Ku filifiliga | - | 18 | - | ||||
| Toe foi leiloa | VSWR | X Filifiliga | - | - | 2 | dB | - |
| Ku filifiliga | - | - | 2.2 | ||||
| Ulufale 1 dB Compression | - | 15 | - | - | dBm | - | |
| Tete'e Thermistor | Rth | @25°C | - | 10 | - | Kohm | - |
| TEC i le taimi nei | It | - | - | - | 1.2 | A | 2 |
| TEC voltage | Vt | - | - | 2.5 | V | 2 | |
| Mauaina (PD) | Ct | - | - | 20 | pF | - | |
| Mata'ituina le taimi nei | Im | - | 0.10 | - | 2.0 | mA | - |
| Pogisa le taimi nei (PD) | Id | - | - | 50 | nA | - | |
Faamatalaga:O chips laser uma e sau mai i mea'ai ua uma ona fa'amaonia e fa'aaoga ai le tele o masini e tatau ona maua ai se fua talafeagai mo le mu.
1. Laisa vevela seti 25 ℃, fa'aituau i le taimi nei i le 55mA
2. Fa'agaioiga mataupu vevela -40 ~ 70 ℃
● Fa'amatalaga masani
(λ=1550nm, TC =25 ℃)
( Ata 1 X- Band S11 ma S22 fa'amaumauga ）

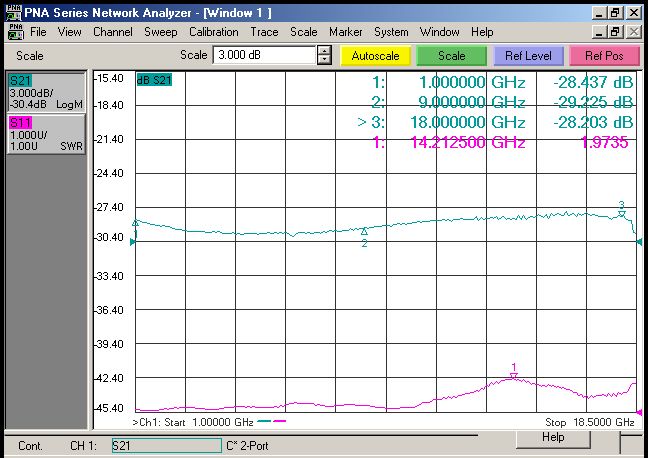

( Ata 2 Ku- Band S11 ma S22 fa'amaumauga ）
● Fuafuaga eletise
| Ta'ita'i# | galuega tauave |
| 1 | Fa'avevela |
| 2 | Fa'avevela |
| 3 | LD-(Fa'aituau) |
| 4 | PD+ |
| 5 | PD- |
| 6 | Fa'alili + |
| 7 | Fa'alili- |
| 8 | LD-(RF) |
| 9 | eleʻele |

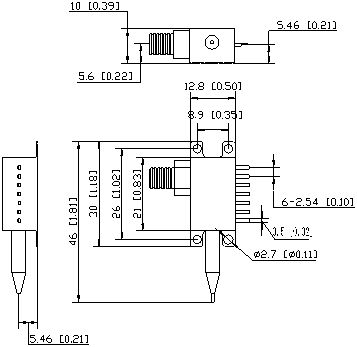

● Otootoga ata (Iunite: mm[inisi])
Feso'ota'i RF: SMA
● Fa'amatalaga Fa'atonu
Pepa 1:
| kote | Ole umi ole galu masani |
| 15 | 1550nm 7PIN butterfly afifi |
Pepa 2:
| kote | Alalaupapa Analog |
| X | 0.1 ~ 12 GHz |
| Ku | 1 ~ 18 GHz |
Pepa 3:
| kote | Ituaiga Connector | mataʻi |
| A | FC / APC | Tu'atasi-faiga 9 / 125 μm fibre pigtail, 0.9mm, 1m umi |
| S | SC/APC | |
| N | Leai se Soso'o |
● Puipuiga
Ole alava lolo'u alaleo e le itiiti ifo i le 20 mm mo le aloese mai alava faaleagaina.
Ia mautinoa o lo'o mama le pito fa'apipi'i alava a'o le'i fa'afeso'ota'i i le opto-circuit.
Ole puipuiga talafeagai ole ESD e manaʻomia ile teuina, felauaiga ma le faʻaaogaina.
talosaga
Feso'ota'iga Fa'amatalaga Saosaoa
Aveese le Antenna
Fesootaiga feaveai ma PCS
Fa'asalalauga feso'ota'iga analog RF
Fesootaiga Militeri
Su'ega, Telemetry, ma le Pulea
Faiga Telemetry
Militeri ma Puipuiga Faiga
