LK-D-SS-12-T Fa'asologa Fa'atonu Fa'atuai Laina & Optical Simulator
- Bandwidth i le 12GHz
- Tulaga maualuga maualuga
- Fa'aogaina le vevela lautele
- Tali amplitude maualalo
- Fa'atuai taimi tuai
Faamatalaga oloa
Faʻalagolago i tekinolosi faʻatekonolosi microwave, o le LK-D-SS-12-T faʻasologa o laina tuai ma masini faʻataʻitaʻi e maua ai le faʻatinoga sili ona lelei ma e faʻaaogaina lautele i suʻega radar, faʻasologa o faailo, faʻasologa faʻasolosolo antennas, faʻataʻitaʻiga antenna ma suʻega pisa vaega. O masini e mafai ona faʻaogaina lelei i luga o le L / S / C / X faʻaupu faʻapipiʻi faʻatasi ma le maualalo o le faʻaogaina o le gau, maualuga le malosi, malosi eletise eletise, ma le gafatia e faʻatautaia faailoilo faʻasalalau tolu e le mafaitaulia. O nei foliga e fa'alelei ai mo le fa'aogaina o fa'ailoga opitika ma microwave.
auiliili Technical
Uiga Fa'aeletise / Mata
| Parameter | Tulaga faataʻatia | Vaega | mataʻi | ||
| min | pei lava | Max | |||
| E faafia aofia | 1 | - | 12 | GHz | |
| Amplitude mafolafola | - | ± 2 | ± 2.5 | dB | |
| Taimi Taimi | 0.01 | - | 150 | us | patino e |
| Faatuai Sa'o | -5‰ | - | +5‰ | - | |
| Faaofiina Maliu | 0 | 20 | 30 | dB | patino e |
| Faʻaaoga VSWR | - | 1.8 | 2 | - | |
| Galuega Faatino VSWR | - | 1.8 | 2 | - | |
| Faʻaletonu | - | 50 | - | Ω | |
| Ulufale 1 dB Compression | - | + 13 | + 17 | dBm | |
| Fa'ailo Fa'a'ole'ole Fa'ailoga Fa'atatau | 60 | - | - | dBc | |
| Fa'a pisa | - | 45 | 55 | dB | 5us, 25℃ |
| Vaʻaia faʻalavelave | -55 | - | + 85 | ℃ | Va'ai Fa'amatalaga Fa'atonu |
| teuina o Meaai a le vevela | -55 | - | + 85 | ℃ | |
| Fa'atuai Fa'atasi vs. Temperature | - | - | 7 | ppm/℃ | |
| Fa'aofi gau ma le vevela | - | 2 | 4 | %/℃ | |
Fa'amatalaga Feso'ota'i & Sapalai Malosiaga
| pine | 1, 2 | 3, 4, 5 | 6, 7 | 8, 9 |
| volitiga | NC | GND | + 12V | NC |
| Taunuuga o loʻo i ai | - | - | 0.3 | - |
| Max Nei | 1 |

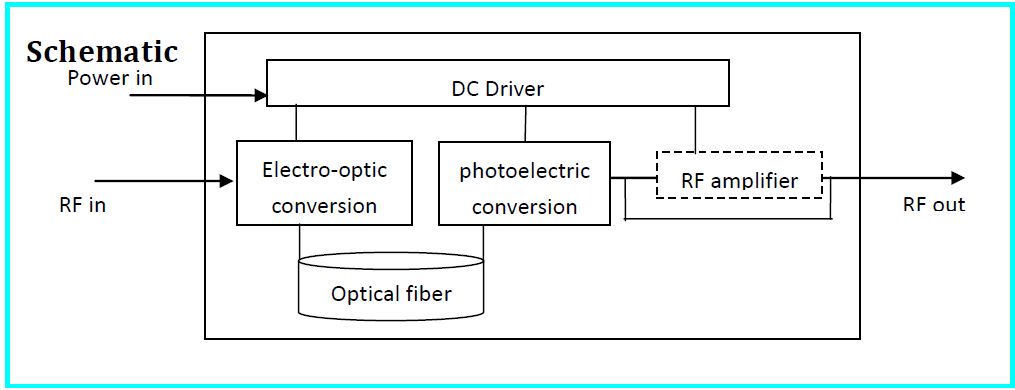

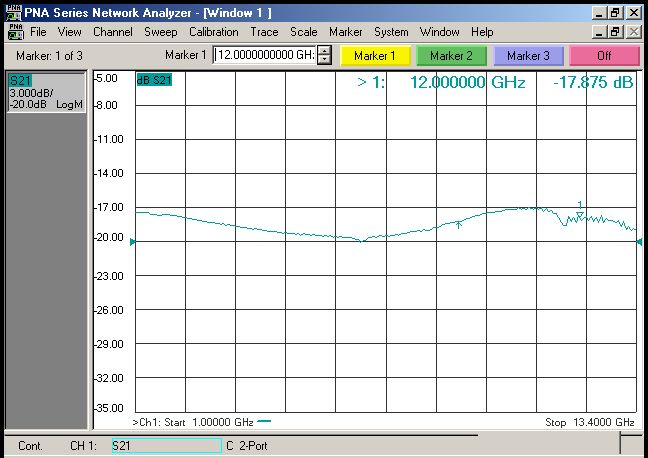

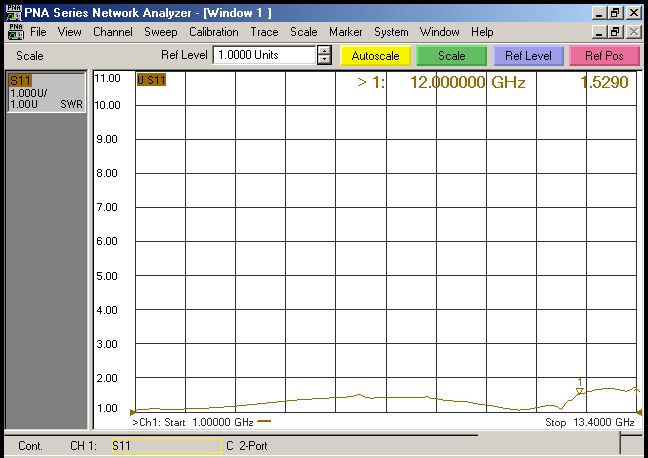

Pipi Tali masani（25℃）

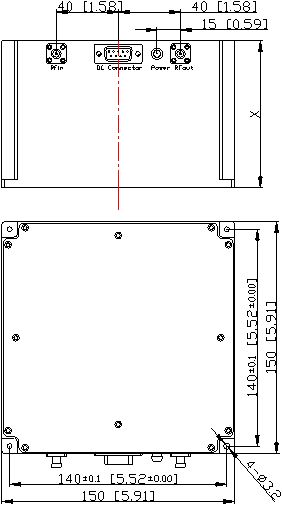

Fua ma pine ( Iunite: mm[inisi])
Feso'ota'iga RF: SMA-K (Fa'apitoa)
Fa'afeso'ota'i DC: DE-9PS(Fa'atonu)
| Faʻasologa o oloa | LK-D-SS-12-TG | mataʻi | |||||
| Fa'atuai taimi(tatou) | 8 | 20 | 35 | 50 | 60 | 80 | Standard |
| X(mm) | 37 | 50 | 65 | 80 | 90 | 110 | |
| Faʻasologa o oloa | LK-D-SS-12-TP | mataʻi | |||||
| Fa'atuai Taimi(tatou) | 8 | 35 | 60 | 80 | 110 | 150 | māopoopo |
| X(mm) | 20 | 45 | 55 | 65 | 78 | 95 | |
okaina Faamatalaga
| Faʻasologa o oloa | afifi | Tulaga Tulaga | Vaʻaia faʻalavelave | teuina o Meaai a le vevela |
| LK-D-SS-12-TGI | Standard | Alamanuia-tulaga | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-12-TGM | Tulaga feololo | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-12-TGS | Fa'apitoa-vaega | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ | |
| LK-D-SS-12-TPI | māopoopo | Alamanuia-tulaga | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-12-TPM | Tulaga feololo | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-12-TPS | Fa'apitoa-vaega | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ |
mataʻi：1. T ole laina maualuga ole tuai ole iunite ole microsecond(us).
talosaga
Su'ega Radar/fa'avasegaina
Faailoga o faailo
Taua faaeletonika
Fa'asologa fa'asolosolo antenna
Antenna simulation
