LK-NYC04D DML DFB Transmitter
- DML DFB Laser Technology
- Maualuluga-Dynamic-Vaega
- E sili atu i le 4GHz le bandwide
- CWDM Galulue Fegalegaleai Fegalegaleai
- Faʻaitiitia le puleʻaga eletise
- tau Low
Faamatalaga oloa
LK-NYC04D DML Transmitter o loʻo aofia ai le DML DFB laser, faʻaogaina o le eletise otometi, eletise faʻamautu suiga suiga, ma le mataʻituina o faʻailoga. O lenei transmitter o loʻo faʻaalia ai le DML laser wavelengths e fetaui ma le CWDM standard, aemaise ile 1270nm, 1290nm, 1310nm, 1330nm, 1350nm, ma le 1370nm.
O lo'o ofoina atu le bandwidth modulation e sili atu i le 4GHz ma e mafai ona tu'uina atu se malosiaga e sili atu i le 2mW. O lo'o fa'agaoioia le module i luga o se sapalai malosi lelei e tasi ma ua mamanuina e fa'atino fa'atuatuaina i totonu ole laina eletise mai le +7V i le +36V. E le gata i lea, o le module ua faʻapipiʻiina ma se faʻailoga e faʻamaonia ai le tulaga masani o le eletise ma le faʻaogaina o le eletise, faʻafaigofieina le mataʻituina ma le tausiga.
auiliili Technical
Mautinoa Tapulaa Maualuga
| Parameter | faʻailoga | Min. | Ituaiga | Max. | Vaega |
| teuina o Meaai a le vevela | TSTG | -40 | + 25 | + 70 | ℃ |
| Laveaʻi galuega | TC | -20 | + 25 | + 55 | ℃ |
| Malosiaga fa'aoga RF1 | Pin | - | 0 |
+ 17 | dBm |
| volitiga | Vin | +7 | + 12 | + 36 | V |
Fa'amatalaga Matata ma Eletise (TC = 25℃)
| Parameter | faʻataʻitaʻiga | faʻailoga | Min. | Ituaiga | Max. | Vaega | mataʻi |
| Wavelength | UC | λ | 1270 | 1310 | 1370 | nm | ITU Tulaga |
| LC | - | CWDM | - | ||||
| Fa'atele(3dB) | - | f3dB | 0.1 | - | 4 | GHz | - |
| Malosi'i Fa'amatalaga Mata | - | P | - | 1 | - | mW | - |
| Pio Malosi Faatatau | UC | rhine | - | - | -150 | dBc/Hz | - |
| LC | - | - | -155 | ||||
| VSWR | - | VSWR | - | - | 2 | ||
| Ulufale 1 dB Compression | - | - | - | + 10 | - | dBm | - |
Malosiaga (TC = 22±3℃)
| Parameter | Min. | Ituaiga | Max. | Vaega |
| volitiga | +7 | + 12 | + 36 | V |
| i le taimi nei(2) | 0.03 | 0.1 | 0.15 |
A |
(1) Tulaga su'ega: Vin=+12V.
● Fa'amatalaga masani

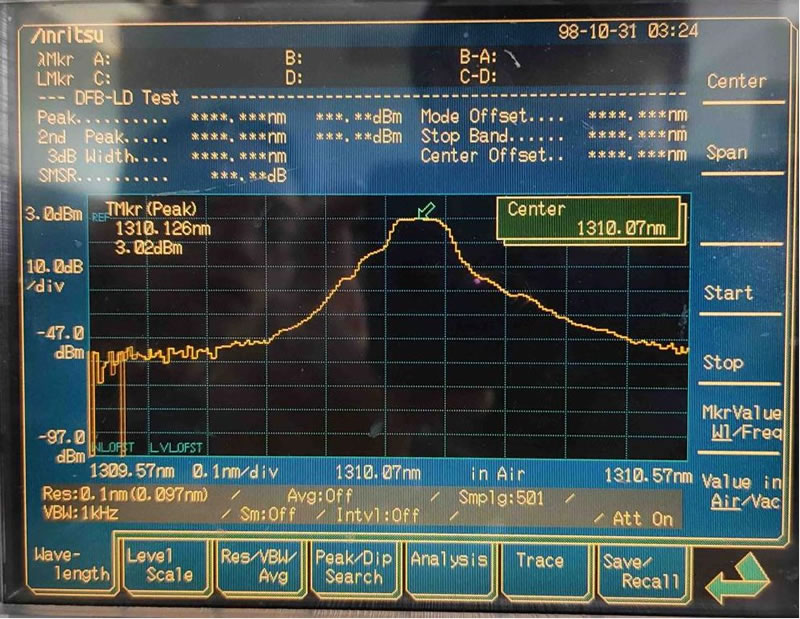

Ata 1 LK-NYC04D-CL DML DBF Laser Fa'asologa Fa'asologa Fa'asolo

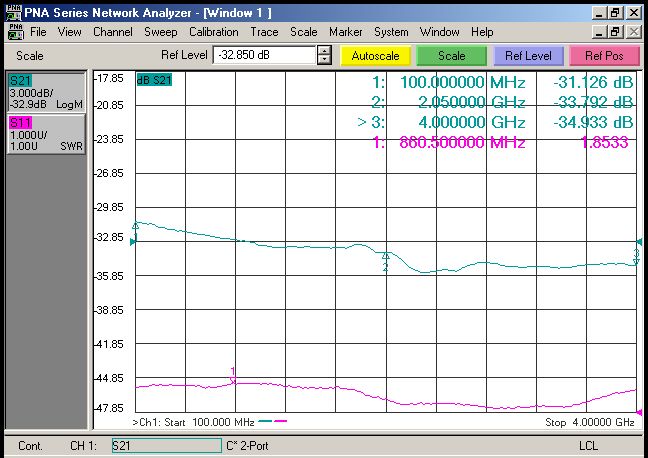

Ata 2 LK-NYC04D-UC DML DBF Laser Fa'asologa Fa'asologa Fa'asolo
● Pi'oga fa'apitoa fa'apitoa
Ata 3 LK-NYC04D DML DBF Laser Pi'o alaleo masani
● Fua Fa'atatau: mm[inisi]

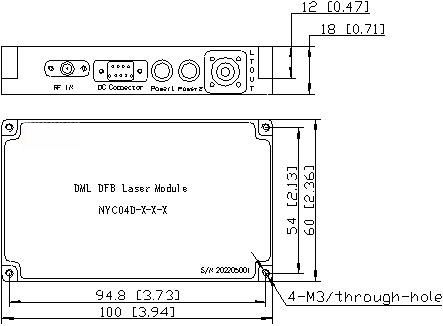

Ata 4 LK-NYC04D DML DBF Transmitter Fua
Feso'ota'i RF: SMA
Feso'ota'i Malosi: J30J-9-ZKP
● Fa'amatalaga Fa'atonu
Pepa 1:
| faʻataʻitaʻiga | Ole umi ole galu masani |
| UL | 1310nm |
| CL | CWDM (O le umi ole galu ole faitalia) |
Pepa 2:
| faʻataʻitaʻiga | mana |
| 00 | 1mW |
| 02 | 2mW |
| 04 | 4mW |
| 06 | 6mW |
Pepa3:
| faʻataʻitaʻiga | Connector | mataʻi |
| N | leai | Flange |
| A | FC / APC | Tulaga 9 / 125μm SM Fiber |
| P | FC / PC | Tulaga 9 / 125μm SM Fiber |
talosaga
Aveese le Antenna
Fesootaiga feaveai ma PCS
Fa'asalalauga feso'ota'iga analog RF
Su'ega, Telemetry, ma le Pulea
Fesootaiga uaealesi broadband
